1.47 inches, driven by ST7789, with a TFT display screen of 172*320 resolution. Optional bare screen or SPI interface module

Name: 147 inches driven by ST7789 with a TFT display screen of 172320 resolution Optional bare screen or SPI interface module
Brand: ORIENTRONIC
Price: 1 USD

Buy cheap 1.47 inches, driven by ST7789, with a TFT display screen of 172*320 resolution. Optional bare screen or SPI interface module product

Brand Name : ORIENTRONIC

Place of Origin : China

MOQ : First purchase, no purchase quantity limit.

Price : Prices are set based on design and quantity.

Payment Terms : L/C, T/T, D/A, D/P, Western Union, Paypal

Supply Ability : 200K Sets / Month

Delivery Time : 4~6 Working Days

Packaging Details : Prices are set based on design and quantity.

Size : 1.47 inches IPS color LCD

Resolution : 172 (H) RGBX320 (V)

Interface type : SPI interface

Control chip : ST7789V3

Highlights of this screen : High-definition IPS, adjustable display orientation

Display colors : 262K full color

Panel size : 19.39 (H) X 36.28 (V) X 1.46 (D)

Display area : 17.3892 (H) X 32.352 (V)

Pixel pitch : 0.0337 (H) X 0.1011 (V)

Pin count : Soldered (12Pin 0.7mm pitch soldered FPC); Plug-in (8Pin 0.5mm pitch top-mounted FPC)

Viewing angle direction : Full viewing angle

Operating temperature : -20~70 degrees

Logic voltage : 3.3V

Backlight type : 3 White LED Parallel

Brightness : 350 (TYP) Cd/m2

Weight : 2.7g

Connection method : Soldered (12Pin 0.7mm pitch soldered FPC); Plug-in (8Pin 0.5mm pitch top-mounted FPC)

Contact Now

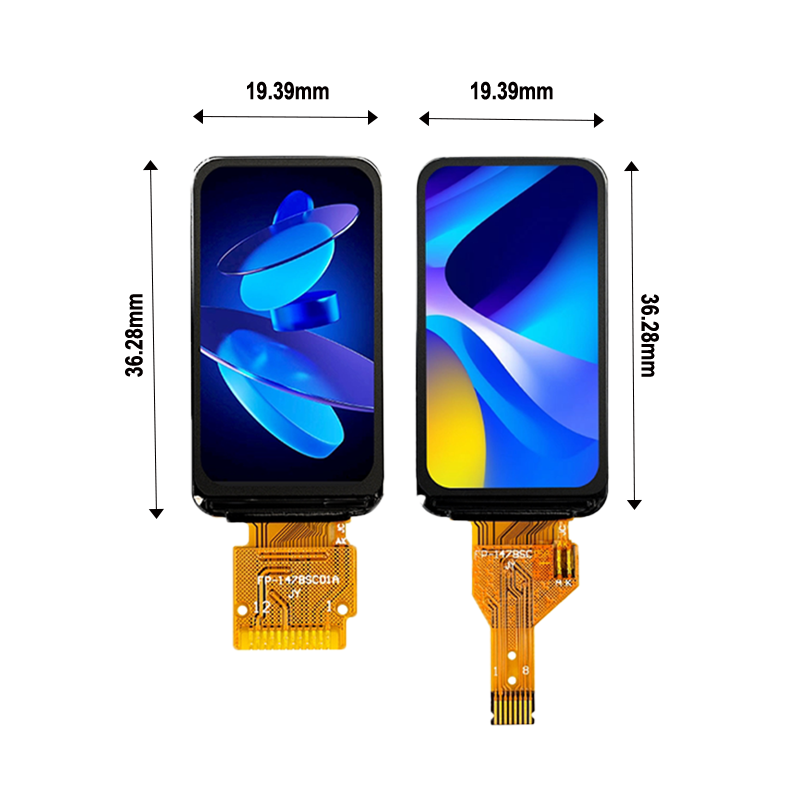

1.47-inch color screen size

1.47 inches, driven by ST7789, with a TFT display screen of 172*320 resolution. Optional bare screen or SPI interface module

Product details presentation

1.47 inches, driven by ST7789, with a TFT display screen of 172*320 resolution. Optional bare screen or SPI interface module

Welding-type pin definition

pin number	pin name	function description
1	GND	Power Ground
2	LED-K	LED Cathode
3	LED-A	LED Anode
4	VDD	Power Supply for Analog, VDD=2.5V-3.3V
5	GND	Power Ground
6	GND	Power Ground
7	D/c	Display data/command selection pin
8	CS	Chip selection pin;Low enable ,high disable
9	SCL	This pin is used to be serial interface clock
10	SDA	SPl interface input/output pin .the data is latched on the risingedge of the SCL signal
11	RESET	his signal will reset the device and it must be applied toproperly initialize the chip .Signal is active low.
12	GND	Power Ground

Connector pin definition

pin number	pin name	function description
1	LED-A	LED Anode
2	GND	Power Ground
3	RESET	his signal will reset the device and it must be applied toproperly initialize the chip .Signal is active low.
4	RS	Chip selection pin ;Low enable ,high disable.
5	SDA	SPl interface input/output pin the data is latched on the risingedge of the SCL signal.
6	SCL	This pin is used to be serial interface clock
7	VDD	Power Supply for Analog, VDD=2.5V-3.3V
8	CS	Chip selection pin;Low enable ,high disable.

Structural drawing

1.47 inches, driven by ST7789, with a TFT display screen of 172*320 resolution. Optional bare screen or SPI interface module
