0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen

Product Categories

Shenzhen Orientronic Display Electronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 095inch SH8501driven serial display with a 120240 highdefinition AMOLED screen
Brand: ORIENTRONIC
Price: 1 USD

Place of Origin : China

Flat Cable Length : 20 mm

Brand Name : ORIENTRONIC

Number of Pins : Plug-in: 15-pin

Payment Terms : L/C, T/T, D/A, D/P, Western Union, Paypal

Dimensions : 0.95-inch color AMOLED display

Pixel Pitch : 90x90 (μm)

Delivery Time : 4~6 Working Days

Control Chip : SH8501

Panel Dimensions : 12.8 x 27.35 x 1.1 (mm)

Display Area : 10.08 x 21.6 (mm)

Supply Ability : Design based on the product

Display Colors : Color

Viewing Angle : Full viewing angle

MOQ : First purchase, no purchase quantity limit.

Price : Prices are set based on design and quantity

Operating Temperature : -20 to 70°C

Resolution : 120x3 (RGB)x240

Packaging Details : Prices are set based on design and quantity.

Interface Type : 4-Wire SPI

Contact Now

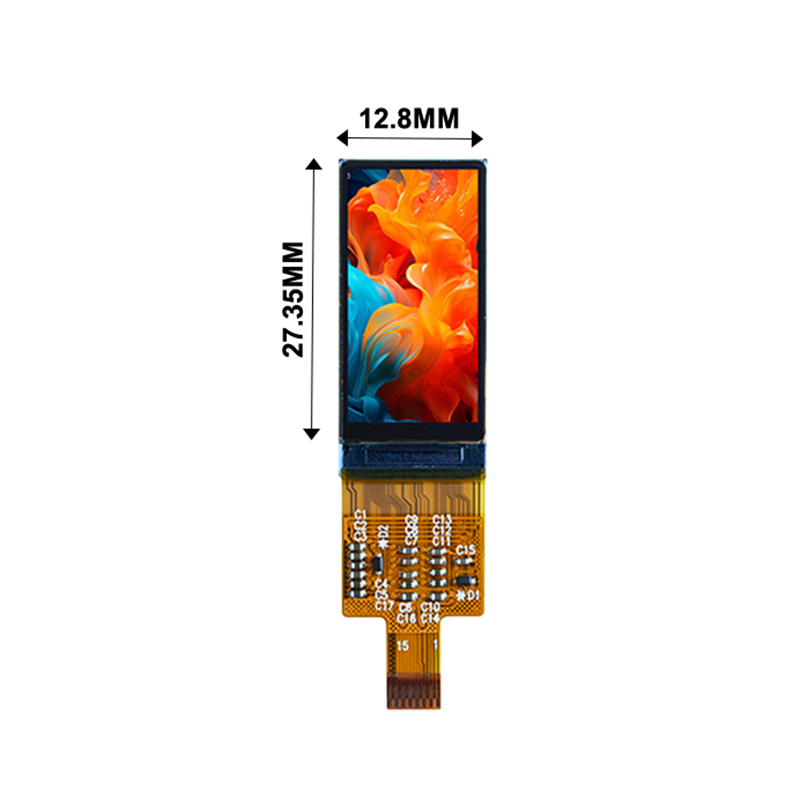

0.95-inch AMOLED screen size

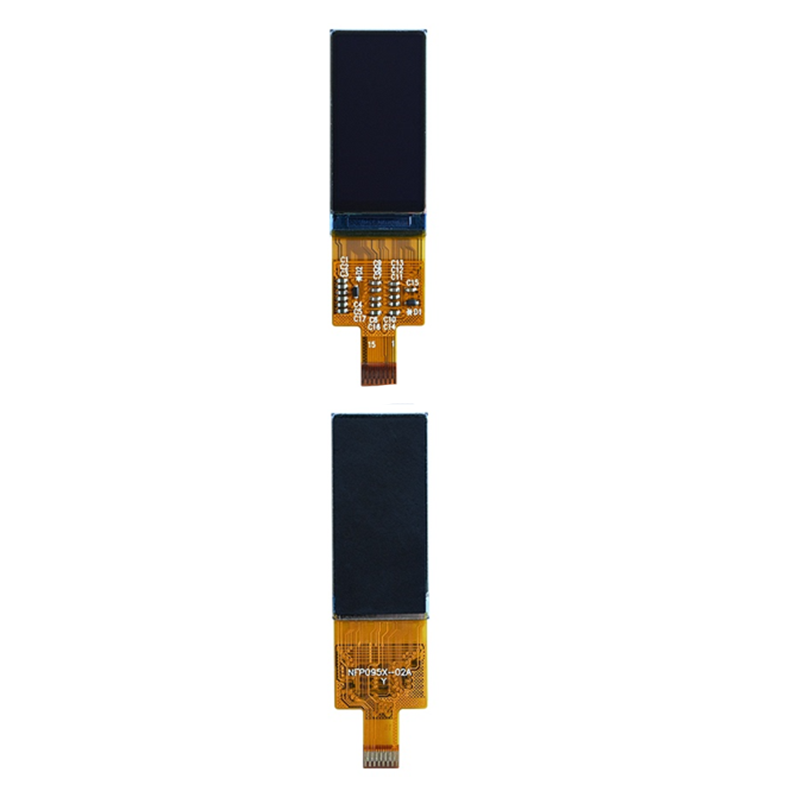

0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen

0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen

0.95-inch, SH8501-driven serial display with a 120×240 high-definition AMOLED screen
